360 Touchless Car Wash System For Sale
- Applicable cars models: Sedans, SUVS, MPV, etc.
- Hot galvanizing + electrostatic spraying install frame with high anti-corrosion and anti rust function
- 360° high pressure water wash，360° foam spray，360° wax spray, chassis and wheel hubs high pressure water wash.
- Adopted 380V 5pcs * 5.5KW fan drying motor, strong wind and fast drying speed.
- Adopt imported well-known brand electronic components, with longer service life, stronger durability and lower failure rate.
- Lower water consumption, lower power consumption and faster car washing time.
Product Description

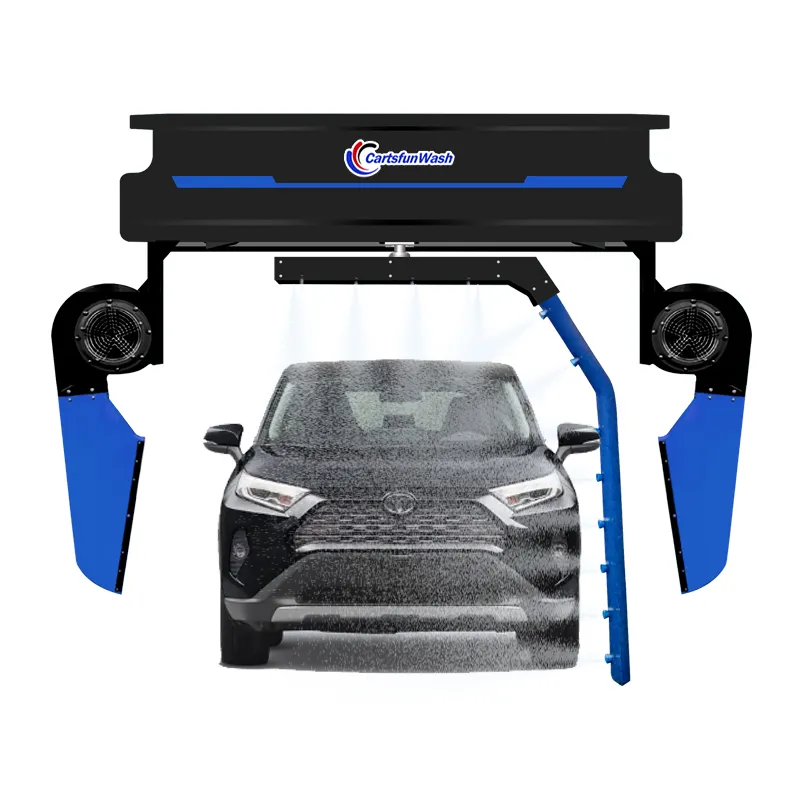

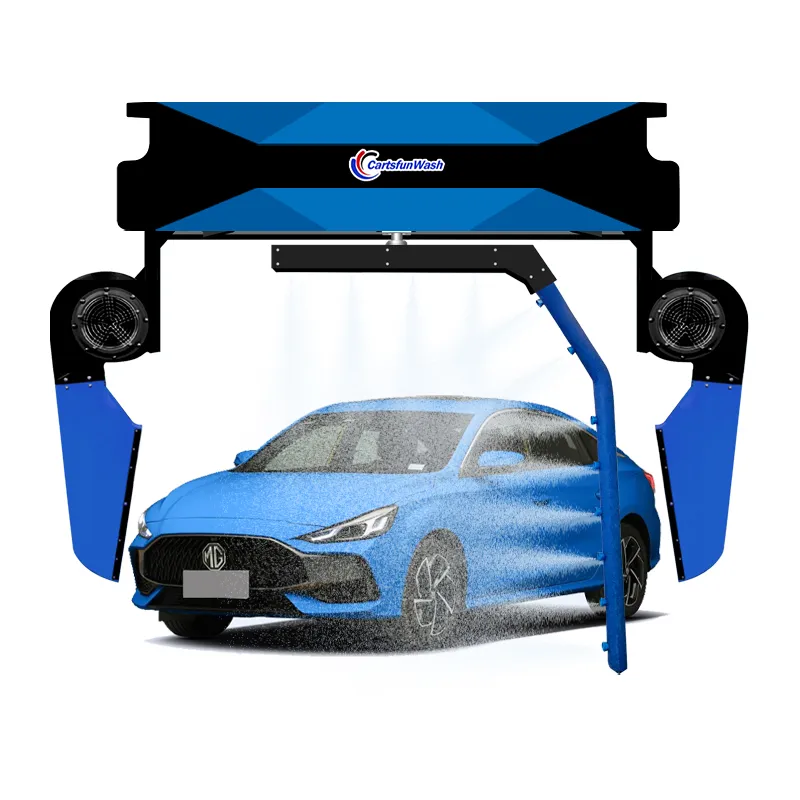

WK-600 Automatic Car Wash Machine, a high-performance system for cars, jeeps and minibuses, integrates advanced washing, waxing and drying, uses Chinese-engineered foam and long-lasting super-soft brushes for scratch-free cleaning, has inclinable side brushes and a dovetail foam brush design for quiet operation, 6 groups of enhanced air-drying fans, three operation modes via an intuitive panel, automated fault self-detection, and offers efficient all-in-one service. Meanwhile, the WK-600 automated car wash system features a 360° rotating arm for full coverage, combines voice and LED guidance with smart reflector recognition for precise alignment and flushing, supports remote one-touch activation, and has safety interlocks to ensure efficient and error-free operation.
Features of WK-600 Automatic Touchless Car Washer
Efficient Cleaning: Featuring 360° high-pressure water jets and AI-powered recognition technology, it ensures precise and effective cleaning, removing dirt, grime, and grease without contact.
Durable Design: The high-quality foam brushes and ultra-soft bristles are designed to last for over 100,000 uses, guaranteeing no scratches on your vehicle’s paint.
Smart Operation: The intuitive touchscreen interface is easy to operate, with remote monitoring and self-diagnostic features, enabling fully unattended operation and round-the-clock service.
Eco-Friendly: Compliant with ISO 14001 environmental standards, the system uses a water recycling process and biodegradable cleaning agents, minimizing water waste and meeting international eco-regulations.
Product Parameters
Product Name | Toucless Car wash Machine |
Model | LABS-02 |
Warranty | 3 years warranty for whole machine |
Standard Machine Installation Size | L*W*H=7000*3700*3100mm |
Max. Car Size | L*W*H=6000*2200*2000mm |
Shampoo Consumption | 10ml- 40ml/car |
Foam Consumption | 10ml- 40ml/car |
Water Wax Consumption | 10ml- 40ml/car |
Water Consumption | Standard wash 94L/car, Fine wash120L /car |
Electricity Consumption | Standard wash 0.52kwh/car, Fine wash 0.99kwh /car |
Time Consumption | 3-8min/car, 8 hours 100 cars, 6 kinds of car wash models can be DIY |
Power Supply Requirements | AC380V/50Hz/3Ph/35KW, 12smm copper cable |
Air Switch | 80A air switch |
Water Pump Motor Power | 15KW/80Bar-100Bar working pressure |
Fan Motor Power | 4 pcs 4KW blowers total 16KW/ Pressure 7300pa/ Air flow 15300CBM/H |
Longitudinal Motor Power | 0.37KW digital drive motor |
Transversal Motor Power | 0.75KW digital drive motor |
Rotary Motor Power | 0.75KW digital drive motor |
Chemical System | 0.75KW |
Central Processing Unit PLC | IndustrialPLCembeddedcentraliprocessor+dual-coresystem |
Drive System | Promise frequency digital drive |
Detection System | Smathree-dimensional monitoring system |
Sensing System | Ultrasound+ Absolutevalueofthedig talencoder |
System language | English ,Chinese,Russian, French, Spanish, Portuguese, Arabic (Can be customized) |
Main Function of WK-600 Touchless Car Wash Machine
1. High pressure pre-wash for under chassis and wheels.
Equipped with a unique chassis and fan hub flush function, 90bar high pressure water can effectively remove dirt on vehicle chassis, body sides and wheels.
2. Smart 360 rotate arm, spray various washing chemicals with high-precision proportioning technology.
100% accurate measurement with adjustable ratio. only 20~50ml pre-soak consumption for washing one car through high precision chemical mixing system, save material and cost efficiently.
3.Smart 360 rotate arm, Flush car body 360° with high pressure water.
Complete 360° rotating within 28 seconds, water saving 50%, electricity saving 60%, automatic detect the length and width of the vehicle, up to 80bar high pressure water can easily remove the dirt.
4. Magic color polish shampoo
Thick foam makes cleaning maintenance component fuller contact with dirt, thereby improving the efficiency of decontamination, making the paint colors more moist, bright lights.
Unique soft-type broad-spectrum activity of ion cleansing agents, emulsifying effective daily cleaning dirt on the car body and non-corrosive for the car paint, wheels, tires, window glass.
5.Soft water with crystal wax coat
Soft water can make magic crystal coating color shampoo and wax completely adsorbed body surface, forming a multi-layered interaction strength protective film, car paint become more glorious and beautiful with durable paint protection.
Crystal coating of wax can be generated in the paint surface layer polymer, the water softener fused into a hard protective film, with superior protection of car paint, and features anti-acid rain, pollution, UV erosion.
6. Unique embedded fast air drying system.
The 360 car washer is equipped with three 5.5kW motors and one 4kW motor. Airflow is controlled through four cylindrical air outlets. Its primary function is to divide the airflow into bundles, reducing wind resistance so that subsequent airflow can smoothly dry the car body surface.
The device optimizes wind speed characteristics. Compared to traditional fan types, while the speed is increased, the wind force is minimized by the time it reaches the car body. In fact, high-speed airflow is the optimal drying solution.
